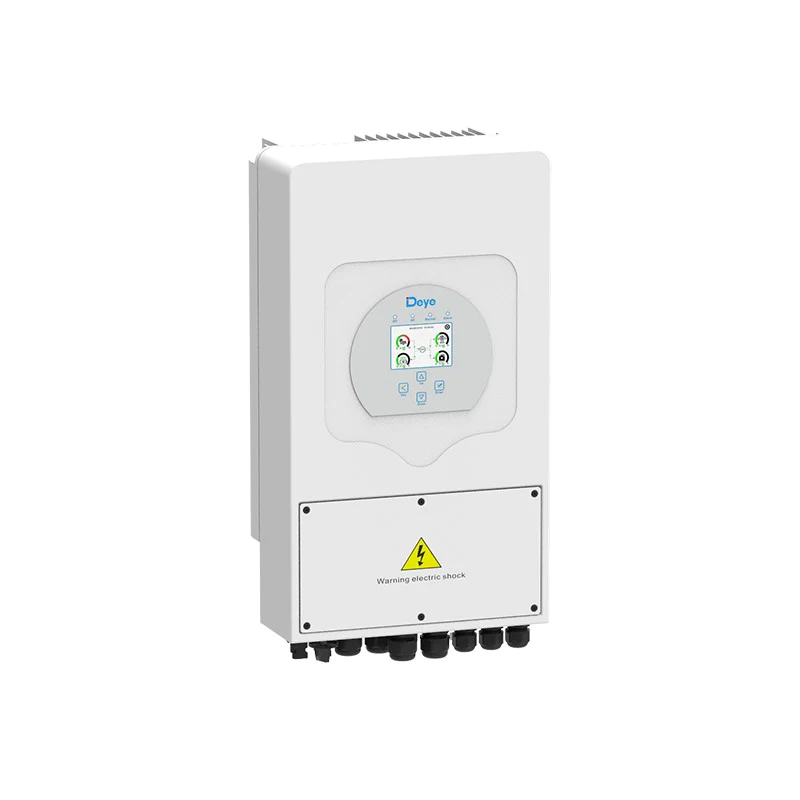

Deye 5KW Hybrid Inverter with dongle

Deye 5KW Hybrid Inverter with dongle
Deye 5KW Hybrid Inverter with dongle - Image 2

Deye 5KW Hybrid Inverter with dongle

Upgrade your home power solution with the Deye 5KW Hybrid Inverter, perfect for areas with limited grid access. This innovative system seamlessly combines solar and diesel generator power, generating 5 kW of energy from solar sources. With an automatic transfer switch, rest assured that your inverter kicks in whenever the grid is available.

Discover the reliability and versatility of the Deye 5KW Hybrid Inverter. Whether you’re off-grid or tied to the grid, this high-quality inverter delivers. Featuring a built-in solar charger, it not only boosts efficiency but also cuts down on system expenses, ensuring cost savings in the long run.

- +
Add to quote
Category: Tag:

 Higer yields

  • Improve self-consumption ratio up to 80%, reducing your electricity bill.
  • DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
  • Two MPPT design, Max. efficiency of 97.6%.

User-friendly

  • LCD Touch screen and buttons, easy operation.
  • Compatible with lithium-ion battery and lead acid battery.
  • Web browser and mobile App monitoring supported.

Reliable

  • PV lighting protection, Anti-islanding protection, Leakage current protection etc.
  • Support store energy from DG when needed, ensure the system working within 7*24H.
  • IP65 protection degree, adapt to indoor and outdoor using.
  • Automatically switch from on-grid to off-grid mode within 5ms.
  • Zero exporting function, fast reaction within 200ms in zero export mode.

Smart

  • Programmable charging and discharging schedule.
  • Both wind turbines and solar panels can be connected as DC input power.
  • Max. 16 units can be paralleled for higher system power.
  • Retrofitting of existing solar system to energy storage system.
Battery Input Data
  • Battery Type: Lead-acid or Li-lon
  • Battery Voltage Range (V): 40-60V
  • Max. Charging Current (A): 120A
  • Max. Discharging Current (A): 120A
  • Charging curve: 3 Stages/Equalization
  • External Temperature Sensor: Optional
  • Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data
  • Max. DC Input Power (W): 6500W.
  • PV input Voltage (V): 370V (100V-500V).
  • MPPT Range (V): 125-425V.
  • Start-up Voltage (V): 150V.
  • PV Input Current (A): 11A + 11A.
  • No. of MPPT Trackers: 2
  • No. of Strings Per MPPT Tracker: 1+1.
AC Output Data
  • Rated AC Output and UPS Power (W): 5000W
  • Max AC Output Power (W): 5500W
  • Peak Power(off-grid): 2 times of rated power, 10 S.
  • AC Output Rated Current(A): 21.7.4A
  • Max.AC Current(A): 25A
  • Max Continuous AC Pass-through(A): 35A.
  • Output Frequency and Voltage: 50Hz; 240Vac,
  • Grid Type: THD<3%(Linear load<1.5%).
  • Current Harmonic Distortion: THD<3% (Linear load<1.5%).
Efficiency
  • Max. Efficiency: 97.60%
  • Euro Efficiency: 96.50%
  • MPPT Efficiency: 99.90%
Protection
  • PV Arc Fault Detection: Integrated (Except European Type)
  • PV Input Lightning Protection: Integrated
  • Anti -islanding Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • Insulation Resistor Detection: Integrated
  • Residual Current Monitoring Unit: Integrated
  • Output over Current Protection: Integrated
  • Output Shorted Protection: Integrated
  • Output over Voltage Protection: Integrated
Certifications and Standards
  • Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
  • Safety Regulation: IEC62109-1, IEC62109-2
  • EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
General Data
  • Operating Temperature Range ( C ): -25—60 C , >45 C Derating
  • Cooling: Fan
  • Noise (dB): <30
  • Communication with BMS: RS485; CAN
  • Weight (kg): 20.5
  • Size (mm): 580 X 330 X 208mm
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
