- Power and reliable
- Excellent high temperature performance
- High Cycle Life and Service Life
- 1C High Performance Lithium Battery
- High Energy Density and Conversion Efficiency
- Environmentally friendly
- Support in Parallel and Series connection (Max 2S2P)
- Low self-discharge
- Easy wall mount or shelf rack installation
- Heavy duty side handles for easy handling and mounting to the wall
- Built in protection for over-charge, over-discharge & over-temperature

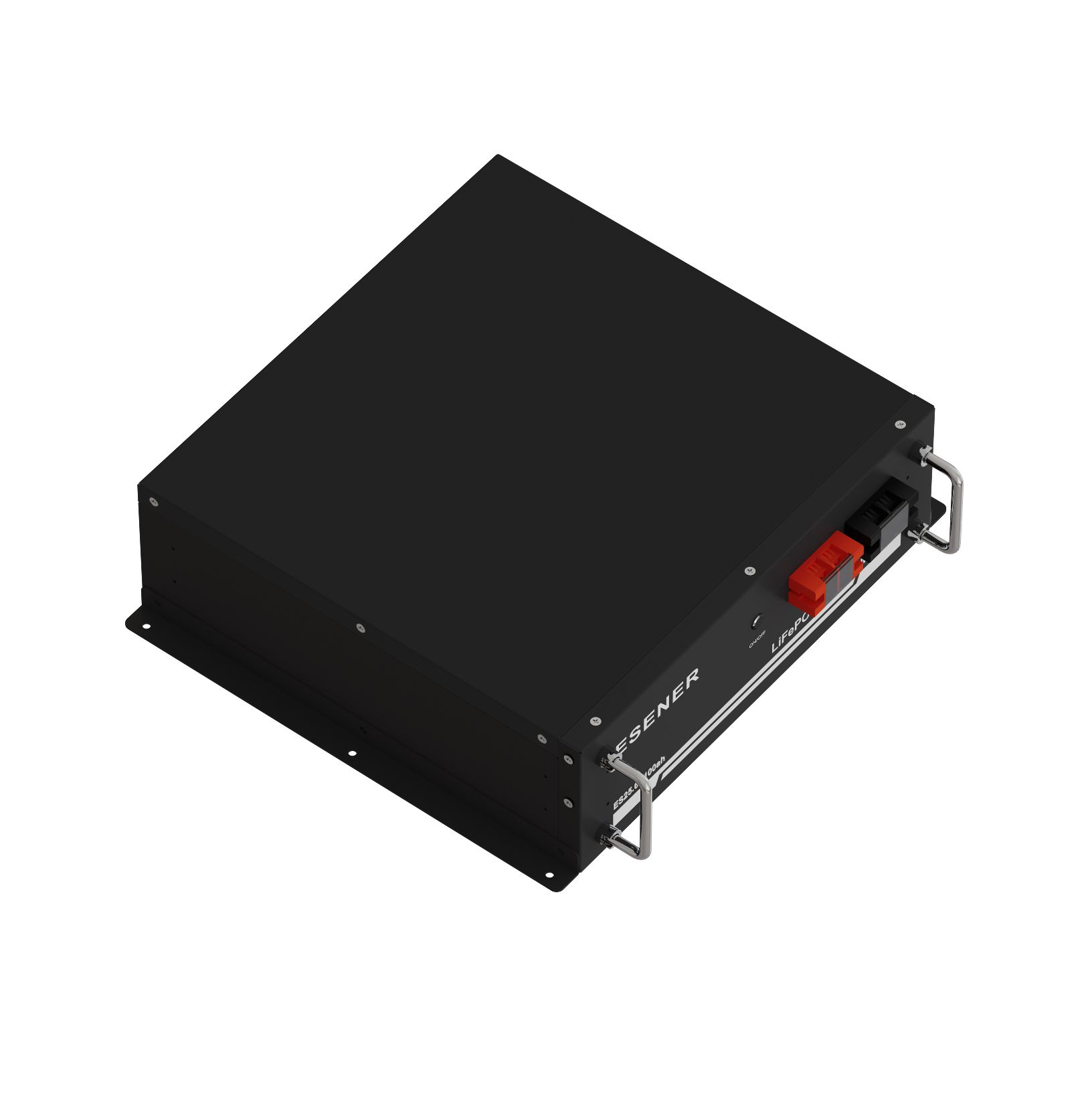

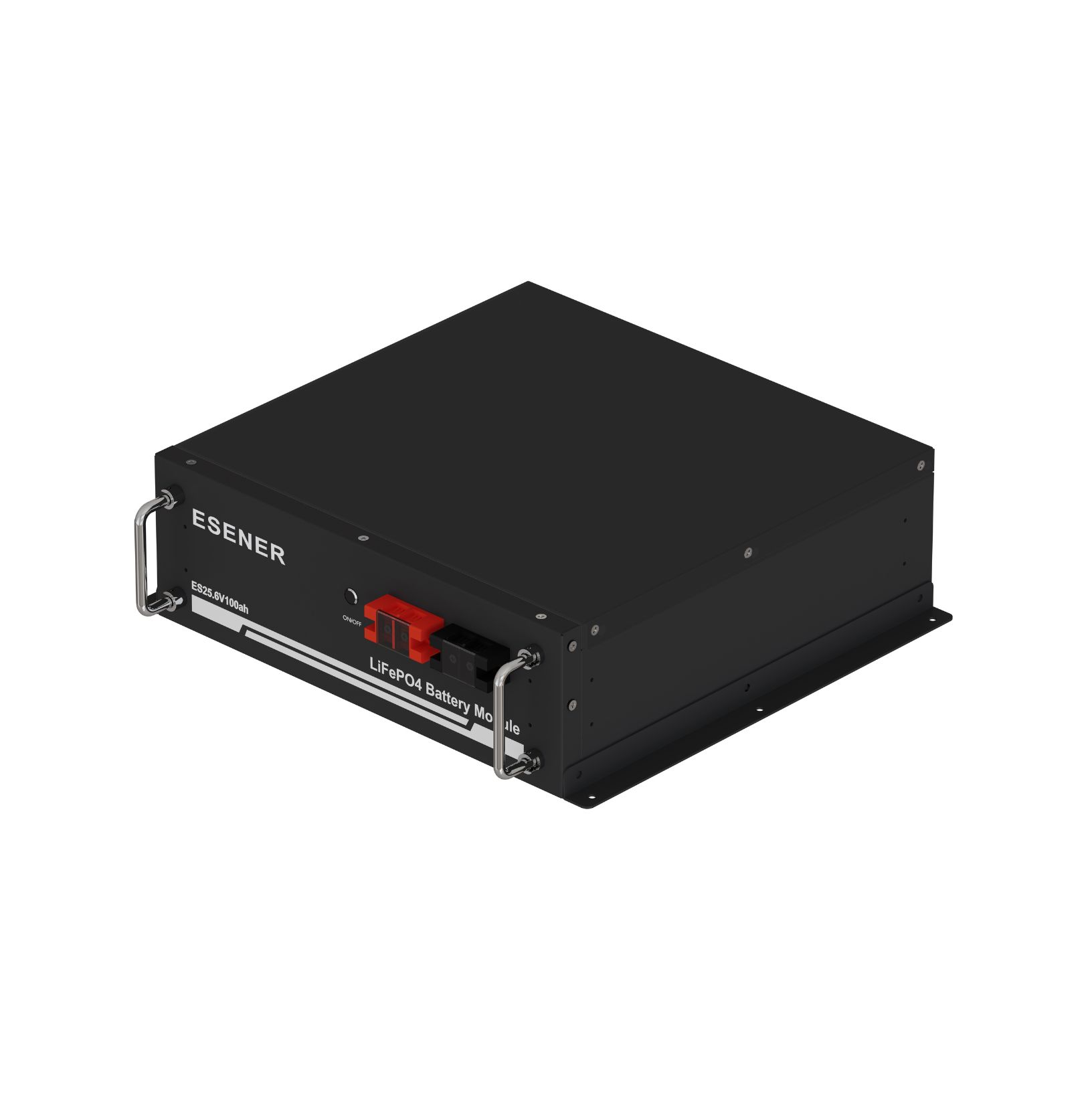

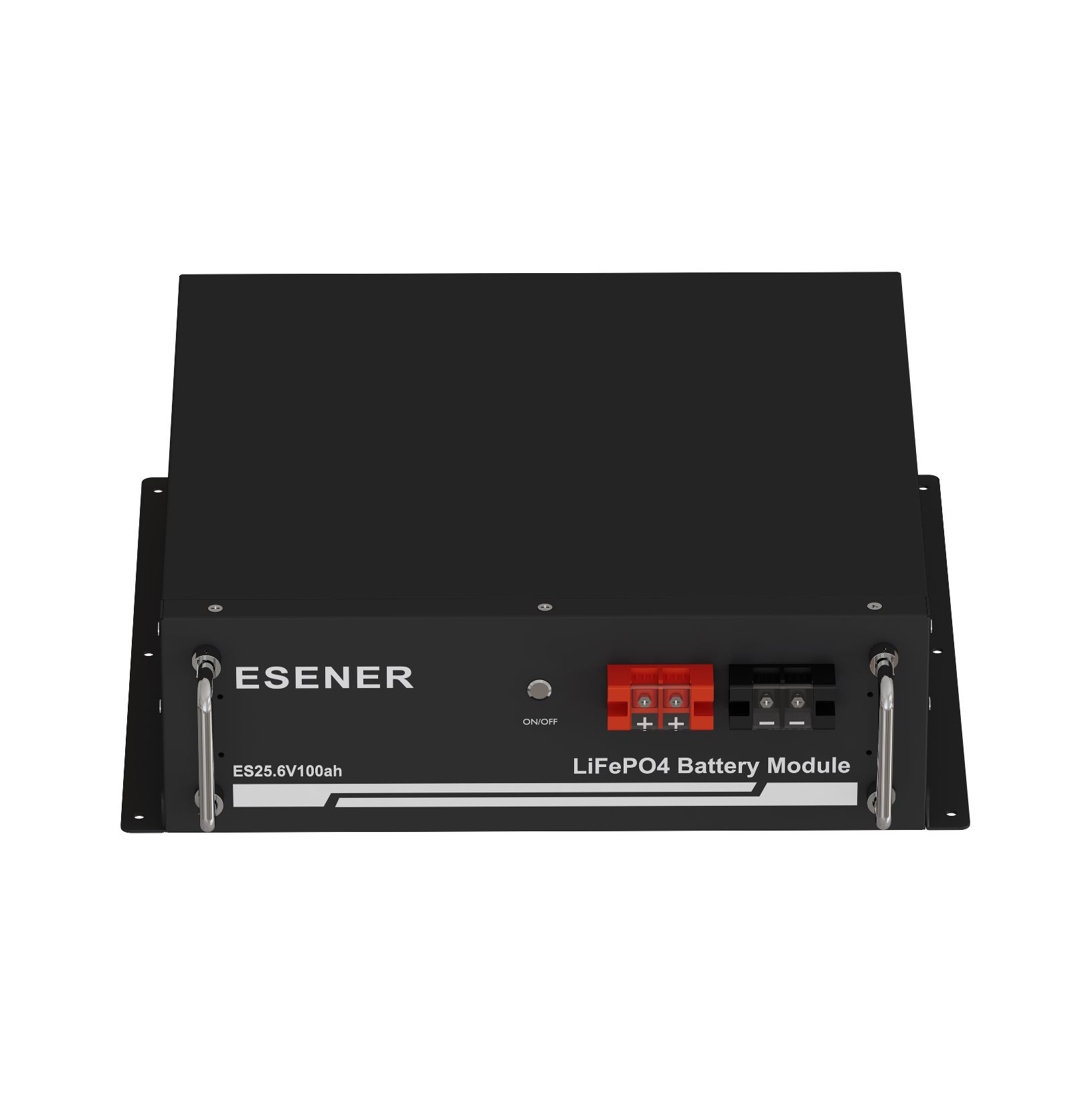

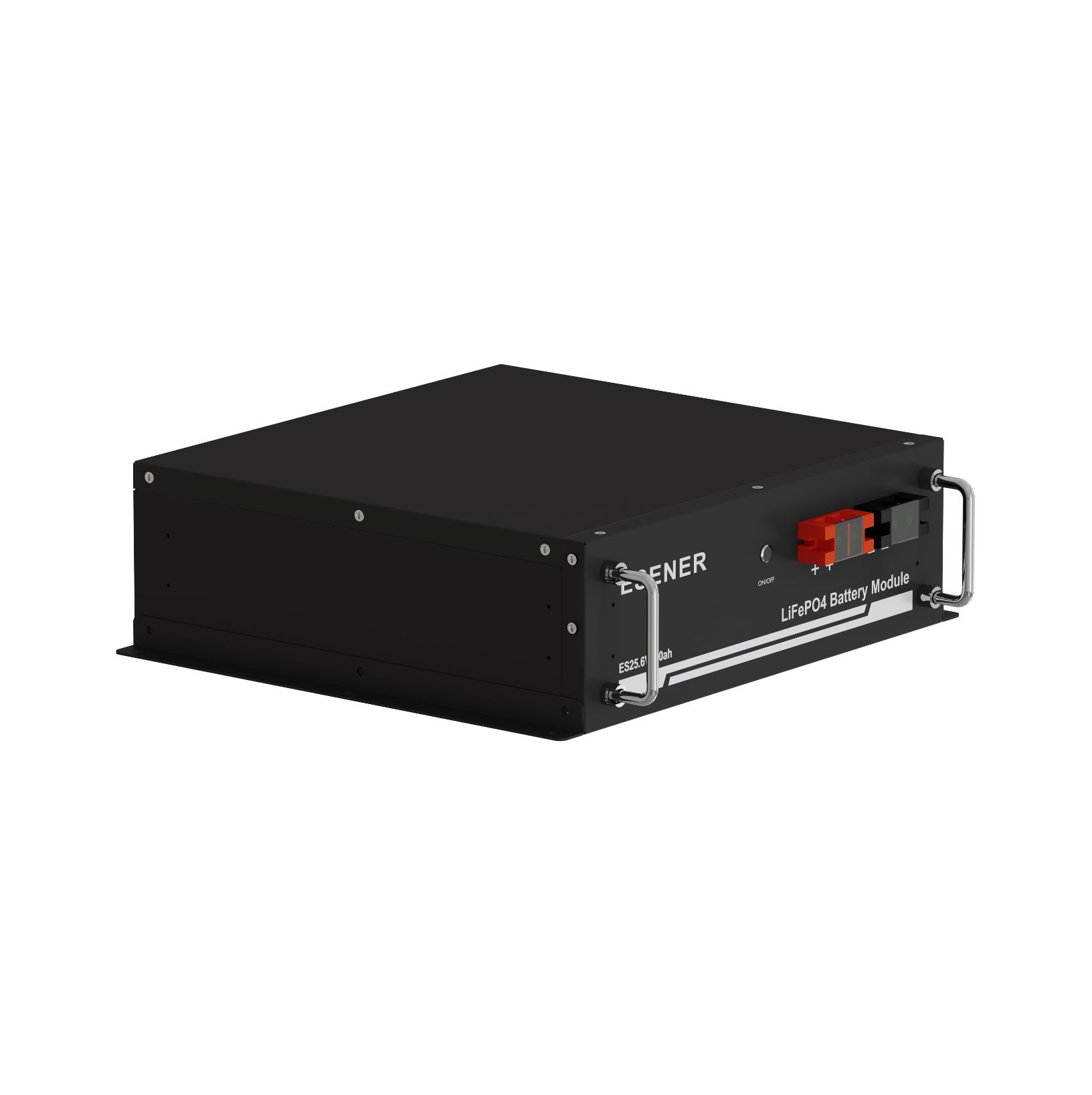

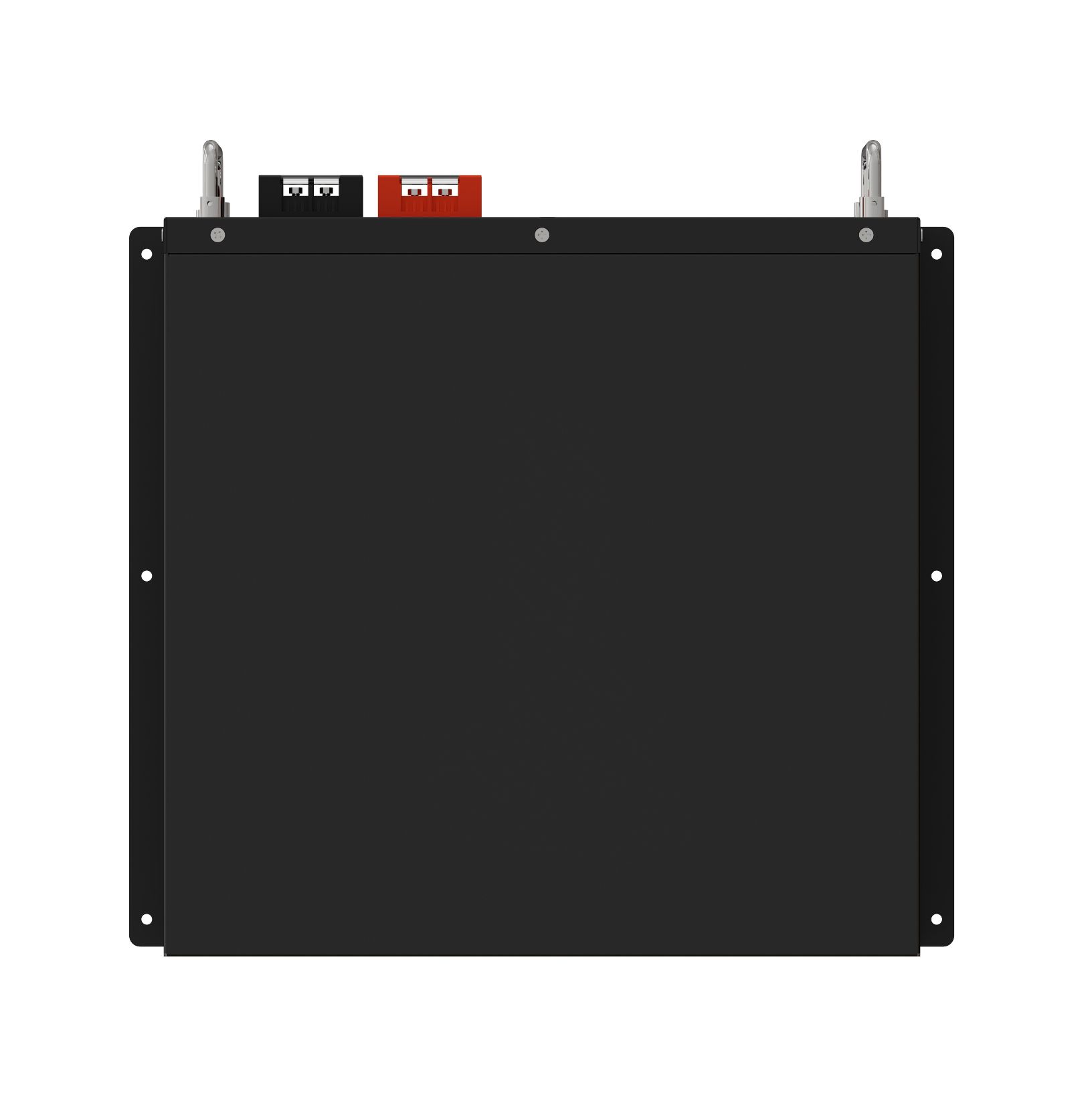

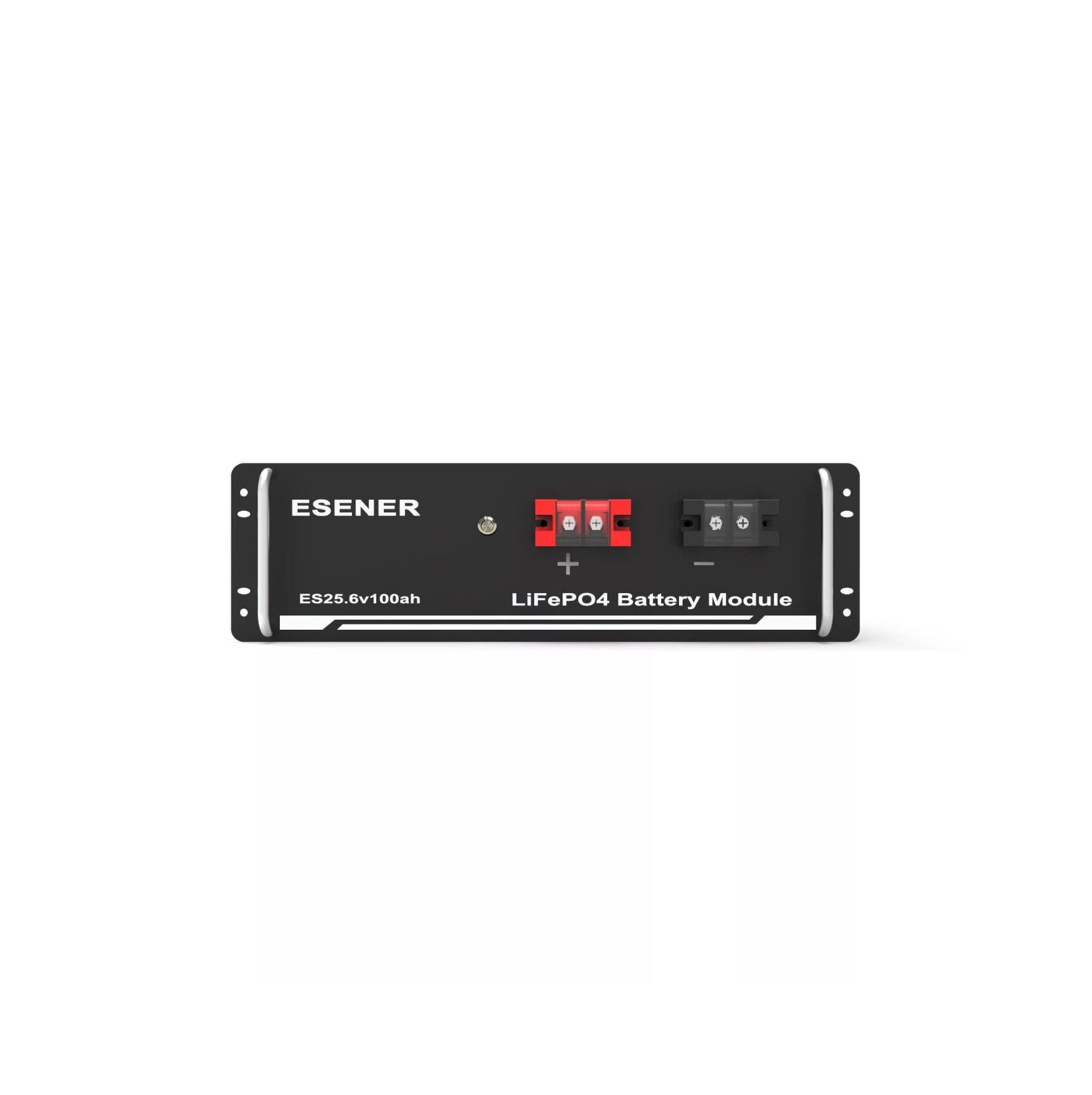

Esener 25.6v 100Ah Lithium Battery
Esener 25.6v 100Ah Lithium Battery
Looking for a reliable solution for your small to medium residential or business solar installation? Consider the Esener 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module. With its proven Lithium Iron Phosphate (LifePO4) composition and impressive performance, it’s tailored for entry-level projects. Designed to seamlessly integrate with Hybrid Inverter systems up to 3.5KVA 24V, this battery module ensures optimal functionality. Plus, its standard 19-inch Rack Mount Embedded design simplifies installation and maintenance, promising a lifespan of up to 10 years. Choose the Esener battery module for a dependable, long-term solar solution.
- Model: ES-25.6V 100Ah
- Rated Capacity (5HR): 100Ah
- Voltage: 25.6V
- Discharge Cutoff Voltage: 20.0V
- Equalised Charge Voltage: 29.2V
- Maximum Continuous Charging Current: 100A
- Maximum Continuous Discharging Current: 100A
- C. Rating: 1.0C
- Weight: Approx. 26kg
- Display: None
- Parallel/Series: Parallel and series connection up to "2S2P"
- Dimensions (WxDxH): 484mm x 420mm x 133mm
- Ports: 1x Positive Socket, 1x Negative Socket, 1x Power switch
- Cells:New Li-Ion Prismatic Cells
- Design Life: -/+ 10 Years
- Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Above 4000 cycles @ 80% DOD
- Certification: CE, UN38.3, IEC, MSDS
- Outer Package Material: Black sheet metal steel case
- Operating Temperature: Charging: 0 to 50°C, Discharging: -10 to 50°C, Storage: -10 to 50°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
