- DoD = Depth of Discharge, recommended up to average daily 80% DoD for extended life, 50% average DoD for ultra-long life. Max allowable DoD is 90%.
- Voltage suitable for various high DC voltage inverters. Please enquire with Freedom Won for pairing support.
- Fly Leads 1,8m long (15/12; 20/16; 30/24 HV). Fly Leads 4m long (40/32; 60/48; 80/64 HV). Power cable Red = Positive, Black= Negative, conductors in table refer to one electrode i.e. per positive and negative connections. Longer cables available on request. Multiples of 6mm2 DC cables available on request for inverters fitted with MC4 type connectors for the battery input.
- End of Life (EoL) defined as cell dropping to 60% of Beginning of Life (BoL) capacity for expected life and as 60% of BoL capacity for warranty.

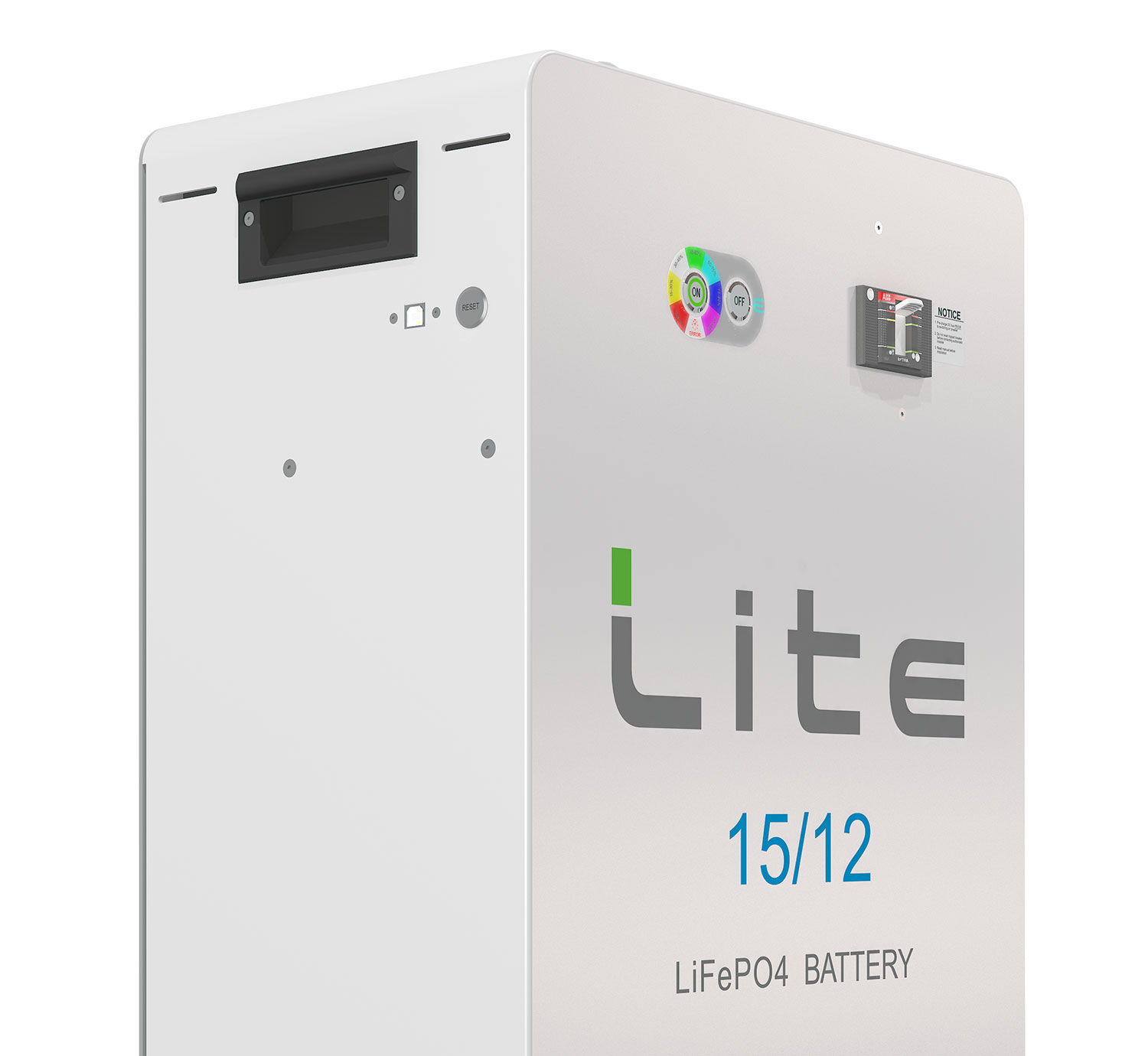

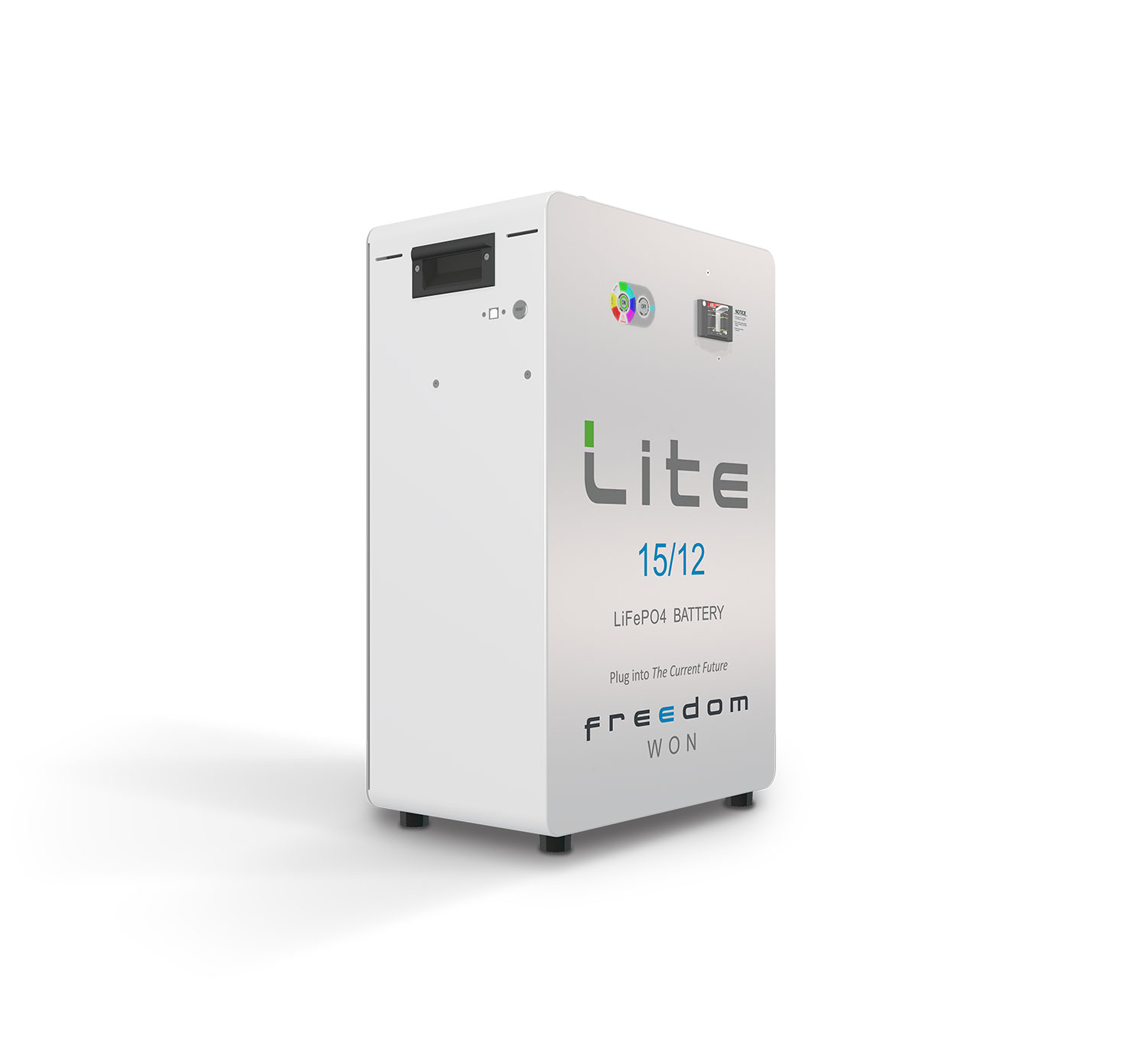

Freedom Lite Home 15/12kWh 52v LiFePO4 Battery
Freedom Lite Home 15/12kWh 52v LiFePO4 Battery
Discover dependable and effective energy storage solutions with the Freedom Won Lite Home 15/12 LiFePO4 Battery. Ideal for both residential and industrial solar setups, this 15kWh Li-ion battery pack ensures reliable power backup with its high capacity
Total Energy Capacity [kWh]
15
Energy, 80% DoD [kWh] 1
12
Energy, 90% DoD [kWh]
13.5
Current Capacity [Ah]
300
Max & Cont. Charge Current [A] 2
300
Max & Cont. Charge Power [kW] 2
15
Max/Cont. Discharge Current [A] 2
480/300
Max/Cont. Discharge Power [kW] 2
24/15
Max Recommended Inverter Total Rated Power (cont.) [kVA]
15
Nominal Voltage [V]
52V, to suit 48V Inverters, min 47V, max 56V
Weight [kg]
134
Dimensions on or against wall excluding protuberances such as glands and breaker handle -Height x Width x Depth [mm]
710x423x365
Enclosure
Aluminium — powder coated white front, rated for indoor use
DC Connection – Integrated Cables [no. per electrode] 3
2 x 50mm2
Control Interface
RJ45 Socket x 2 – CAN Bus for Interfacing with Compatible Inverters and System Controllers, and communication for the connection of parallel batteries – note that parallel batteries must all be of the same model.
Protection
Shunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual reset. Includes overcurrent, cell under and over voltage, temperature, weak cell detection, minimum SOC control.
Human Interface
State of Charge Display (0 to 100%), Error light, Error Reset Button, USB Plug for Programming
Warranty 4
10 years or 4 000 cycles for average 80% DoD, and max 90% DoD
Service Life 4
>16 years (>5 500 cycles) expected life at 80% DoD 1, >20 years (>7 500 cycles) at 50% DoD
Essential Accessories
Note that for connecting the battery to a PC a USB “printer” cable is required (one is supplied with each battery) CAN Bus Termination Resistor – one required per battery (one included with battery) CAN Bus Cable (RJ45 LAN Cable)-one required per battery (not supplied with battery). Note some inverters will require a special (non-standard pin configuration) cable – see installation manual.
