- The maximum (peak) and continuous current and power ratings are the same for the LiTE Commercial HV and HV+ battery range. The maximum values given apply to both charge and discharge. For systems requiring more than 400kW from the Commercial HV range and 630kW for the HV+ range, two or more batteries must be installed in parallel.
- Fly Leads 4.0m long as standard, power cable Red = Positive, Black = Negative, conductors in table refer to one electrode i.e. per positive and negative connections. Up to 8m long available at extra cost (must be specified in order). Note that the fly leads exit the battery on the right-hand side near the floor on all the LiTE Commercial HV and HV+ models. This is to suit the bottom entry of the floor standing ATESS inverters. A cable trench is recommended for routing this cable along with all the other cables going to and from the inverter (a cable tray is an alternative).
- Charging below 0°C not permitted. Extended time above 35°C not recommended for optimal battery life.
- See the Freedom Won Warranty document for further detail.
- Excluding protrusions

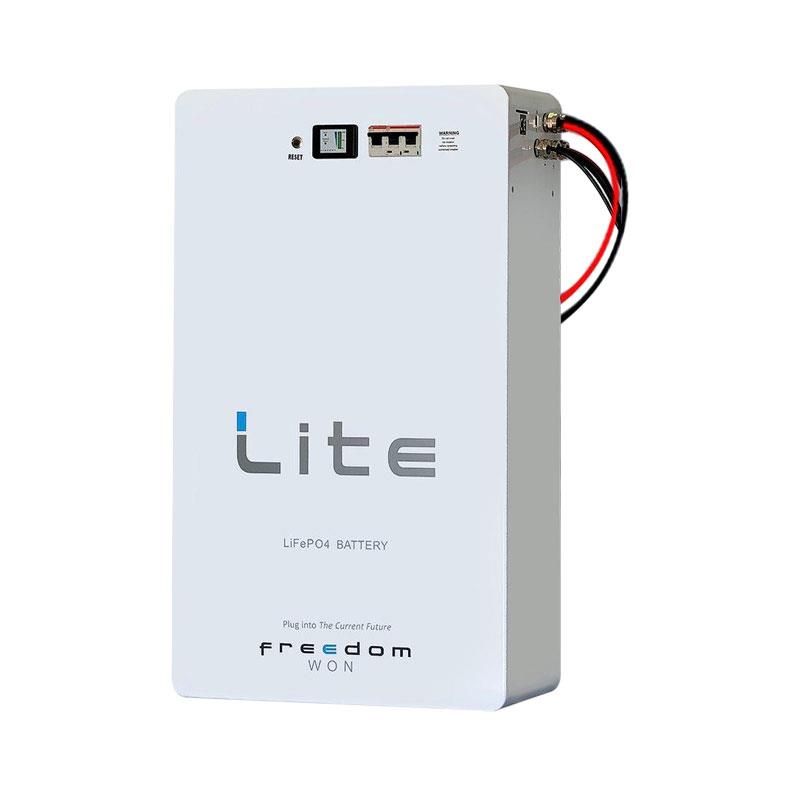

Freedom Won 60/48 [HV] Lite Commercial Battery
![Freedom Won 60/48 [HV] Lite Commercial Battery](https://www.sunrg.co.za/wp-content/uploads/2024/03/Freedom-Won-80kWh-HV-Lite-Business-Battery.jpeg)
Freedom Won 60/48 [HV] Lite Commercial Battery
Total Energy Capacity [kWh]
100
Energy, 80% DoD [kWh] 1
80
Energy, 90% DoD [kWh]
90
Current Capacity [Ah]
200
Max & Cont. Charge and Discharge Current [A] 1
200
Max & Cont. Charge and Discharge Power [kW] 1
112
Nominal Voltage [V]
512
Max/Min Operating Voltage [V]
568/456
Max. Inverter Cap. [kVA]
120
Total Weight [kg]
883
Height [mm]
1 405
Depth [mm]
365
Length [mm] 5
1 636
DC Cables, [no. per electrode] [mm2] 2
1×95
Round Trip Efficiency
96-97%
Enclosure
3mm thick Aluminium, powder coated, tamper proof, indoor use
External Interface
CAN Bus
On-board Management
Full battery management system and internal trip protection
Human Interfaces
On and Off Buttons, State of Charge Display (0 to 100%), Error light, Error Reset Button, USB Plug for Programming and data access with PC, main breaker
Protection
Shunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual reset. Protection for overcurrent, cell under and over voltage, temperature, weak cell detection and other critical events
Battery Chemistry
Lithium Iron Phosphate (LiFePO4)
Cell Form Factor
Large Format heavy-duty prismatic cells of 200Ah each and 3,2V nominal voltage, fully sealed in aluminium casing with laser welded electrode connection
Battery Cooling
Natural Convection (heat generation is negligible inside the battery)
Suitable Ambient Temp
[°C]
0°C to +35°C
Extreme Operating Temp [°C] 3
-20°C to +60°C
