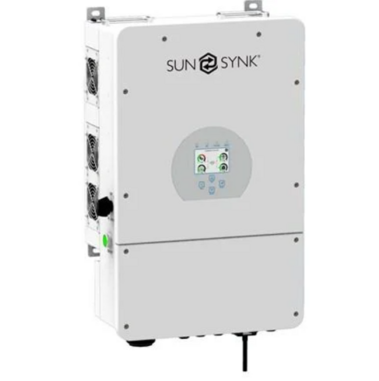

Sunsynk 50kW HV 3 Phase Hybrid Inverter

Sunsynk 50kW HV 3 Phase Hybrid Inverter

Sunsynk 50kW HV 3 Phase Hybrid Inverter

Enhance your solar projects with the Sunsynk Three-Phase Hybrid Inverter. This efficient power management solution optimizes energy flow from various sources like solar, grid, and generators. Seamlessly store and distribute power as needed, ensuring maximum efficiency for your installations.

Category: SunSynk Tag: Solar Inverters

Features
Technical Specifications

INTERACTIVE

Easy and straightforward to understand LCD display

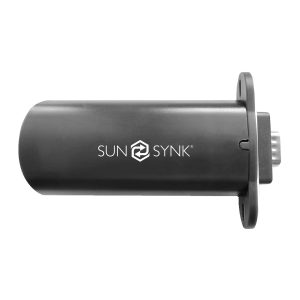

Supporting Wi-Fi or GSM monitoring
Visual power flow screen
Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker
Smart settable 3-stage MPPT charging for optimised battery performance
Auxiliary load function
Multi-inverter function: grid-tied and off-grid

COMPATIBLE
Compatible with mains electrical grid voltages or power generators
Compatible with wind turbines
230V/400V Three-phase Pure Sinewave Inverter
It can power up both single-phase and 3-phase loads
Self-consumption and feed-in to the grid
Auto restart while AC is recovering
Maximum charging/discharging current of 50A + 50A
DC and AC coupled to retrofit existing solar system
Compatible with high-voltage batteries (600V)

Weight: - 75 kg
Rated Power: - 50,000W
Min PPT Voltage: - 150V
Max PPT Voltage: - 850V
DC Startup Voltage: - 180V
DC Shutdown Voltage: - 150V
Max Input Voltage: - 1,000V
Max DC Power: - 65,000W
Max AC Power (5 Minutes): - 55,000W
Surge AC Power (1 Second): - 75,000W
Max DC Current: - 144A
Max DC Inputs: - 8
Has DC Fuses: - 0
Connector: - MC4
Included Connectors: - 0
Euro Efficiency: - 99.9%
Transformer: - None
MPPT Quantity : - 4
Has Integrated DC Switch: - Yes
