- More Usable Energy : 100% Depth of Discharge
- Flexible Investment : Scalable from 10.65 to 85.2 kWh
- Safe & Reliable : Premium Lithium Iron Phosphate(LFP) 6000 cycles
- Easy Installation : Floor Stand or Wall Mounted
- High Energy Density : Propprietary CTP Technology
- Perfect Compatibility : Compatible with Major PCS Brand

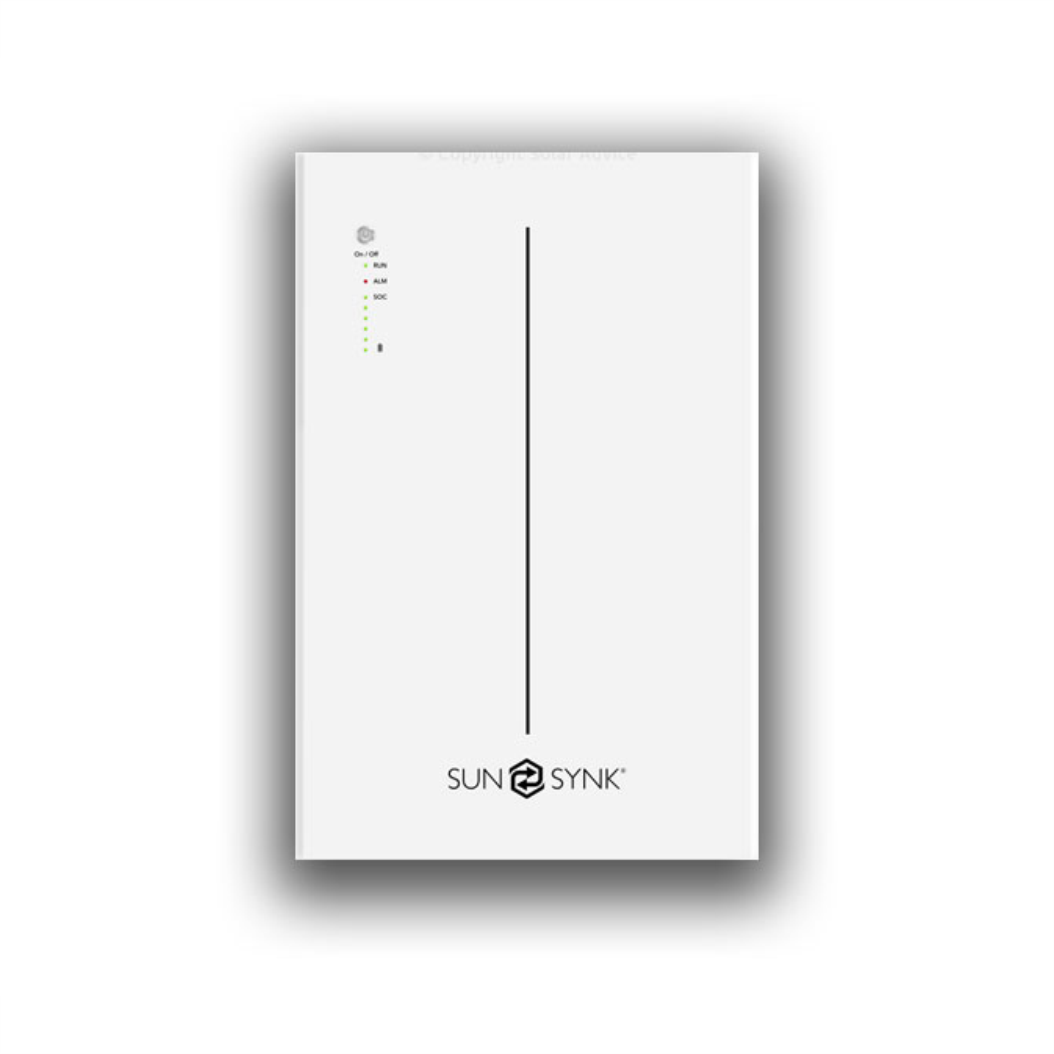

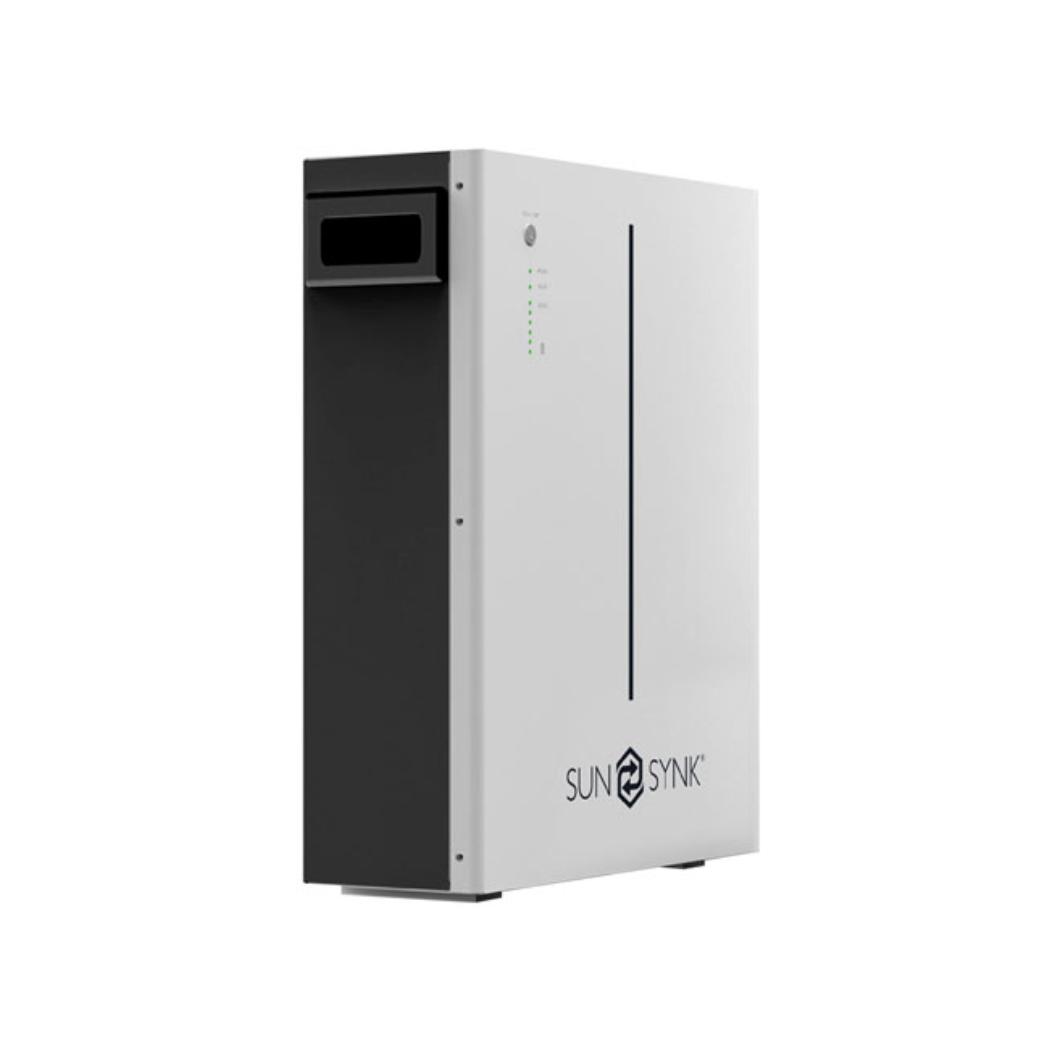

Sunsynk Battery LFP Wall Mount 10.65kWh 51.2V
Sunsynk Battery LFP Wall Mount 10.65kWh 51.2V
Sunsynk presents its meticulously crafted energy storage solution, ideal for residential UPS and off-grid applications. Featuring cells manufactured by BYD, a renowned global leader in lithium-ion battery technology.
Introducing the Sunsynk Battery LFP Wall Mount 10.65kWh 51.2V, comprising lithium-ion phosphate rechargeable batteries rated at 51.2V with a capacity of 10.65kWh. This unit is equipped with a built-in battery management system, ensuring consistent and optimal performance.
IMPORTANT NOTICE: Please be aware that these batteries utilize BYD cells, as opposed to Sunsynk batteries which incorporate CATL cells. While these batteries may seem almost identical, it’s crucial not to mix BYD and CATL batteries within the same system.
Specifications
- Nominal Voltage : 51.2 VDC
- Nominal Capacity : 208Ah
- Battery Energy : 10650 Wh
- Charge Voltage : 55.68~56.16Vdc
- Discharge Voltage : 45.6-56.16 Vdc
- Nominal Charge/Discharge Current : 100A
- Nominal Charge/Discharge Power : 5000W
- Max Charge / Discharge Current : 200A
- Max Charge / Discharge Power : 10000W
- Short Circuit Current : 540A
- Display : SOC status indicator, LED indicator
- Communication : RS232、RS485、CAN
-
- Dimension( W×D×H mm ) : 550×160×836mm
- Weight (Kg) : 90kg
- Installation : Floor stand or Wall mounted
- Working Temperature : -20°C ~ 60°C
- Storage Temperature : ≤25°C,12 months; ≤35°C,6 months; ≤45°C,3 months
- Operating / Storage / humidity : ≤ 95%RH
- Max Operating Altitude : ≤2000m
- IP Rating : IP20
- Cell Technology : LiFePO4,Lithium Iron Phosphate
- Cycle life : 6000 Cycles @ 80% DOD / 25°C / 0.5C,60% EOL
- Scalability : Max 8 batteries in parallel
