Low self discharge
-
High cycle and service Life
-
1C High performance lithium battery
-
Easy wall mount or shelf rack installation
-
Excellent high temperature performance
-
Advanced BMS with current limiting function
-
Compatible with most inverters and chargers
-
High energy density and conversion efficiency
-
Complete with integrated Battery Management System
-
Hubble Cloudlink integration ready for cloud monitoring
-
Heavy duty side handles for easy handling and mounting on the wall
-
Built in protection for over-charge, over-discharge & over-temperature
-
CAN Bus, fully integrates and communicates with leading Inverter brands

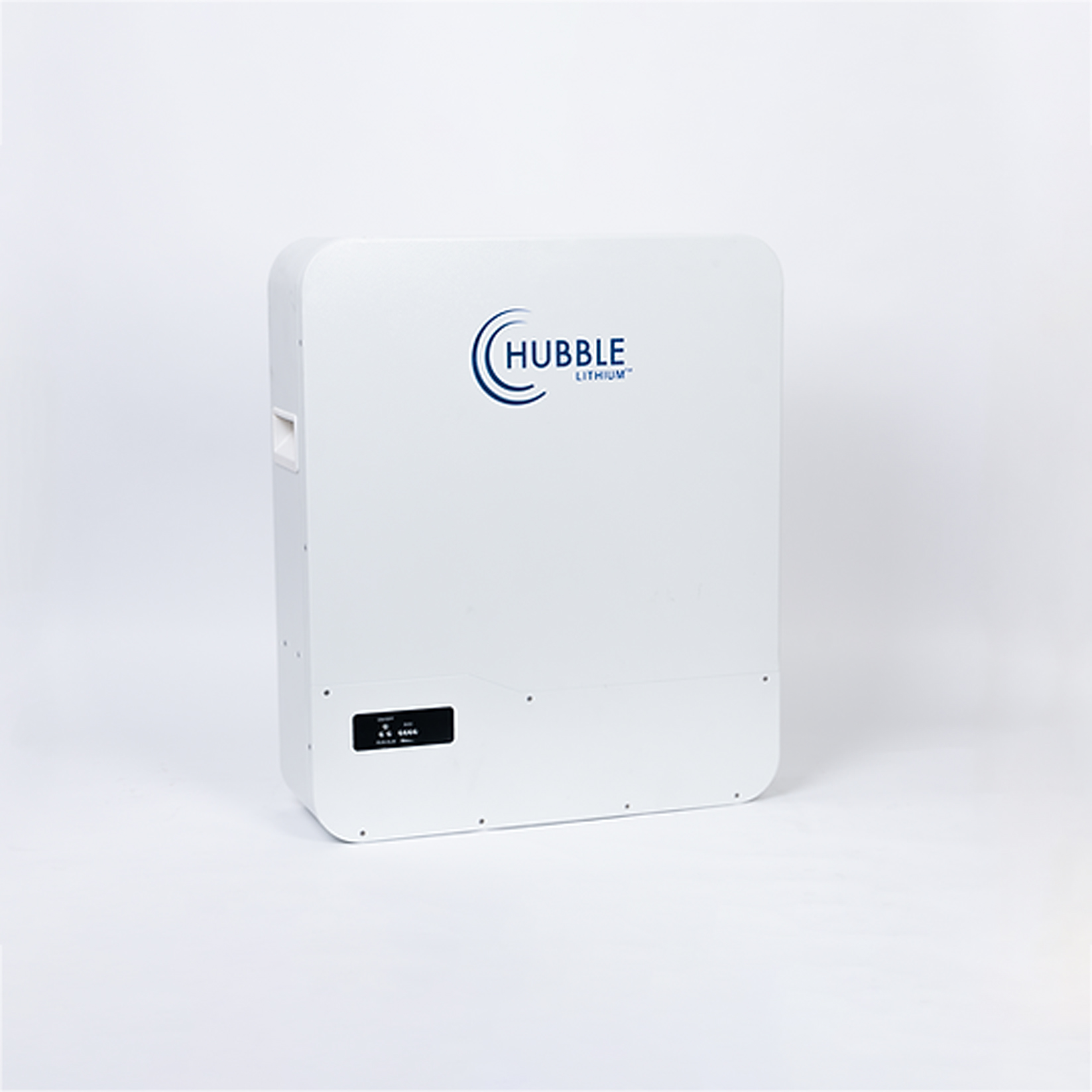

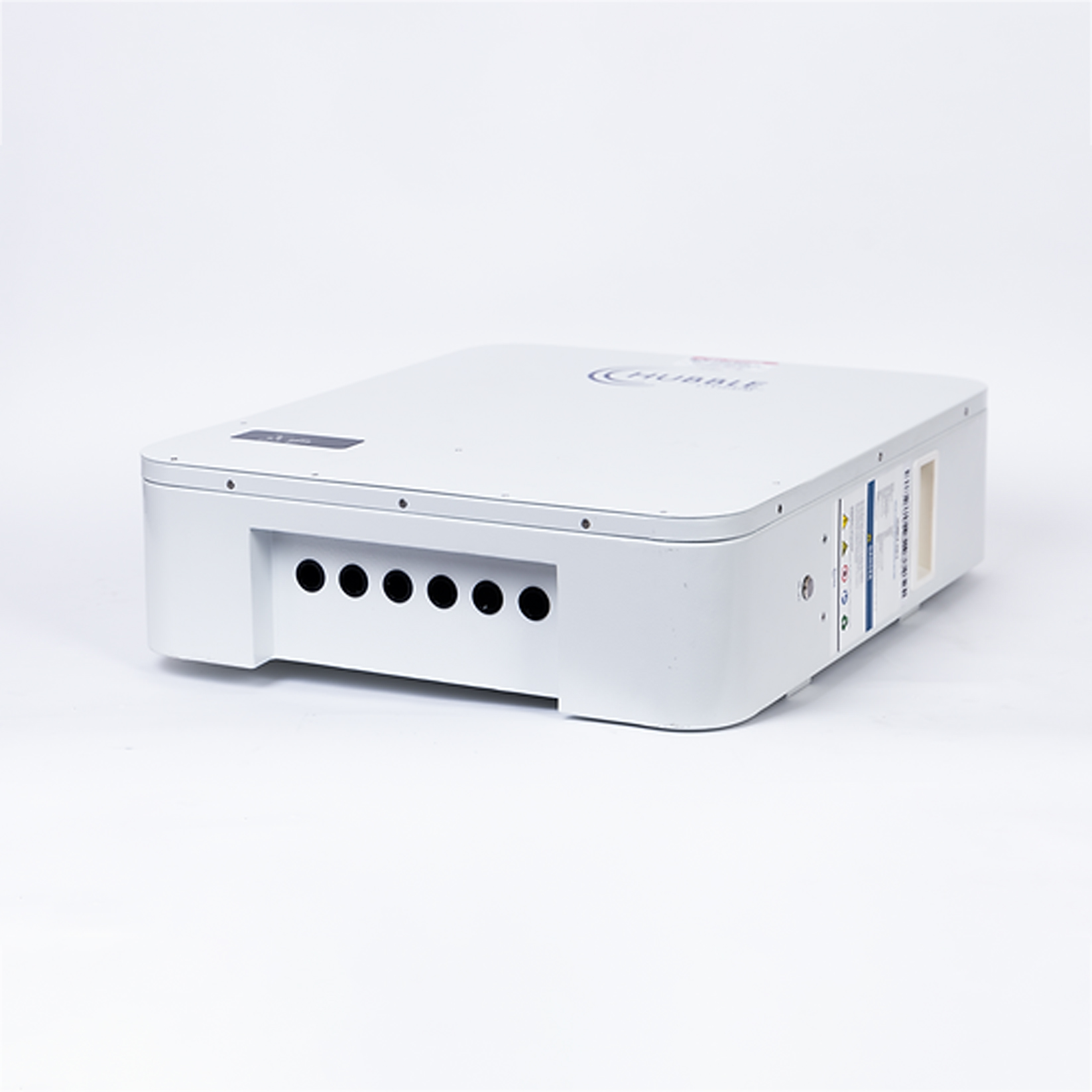

HUBBLE AM-5 LIFEPO4 5.12KWH 51.2V BATTERY
HUBBLE AM-5 LIFEPO4 5.12KWH 51.2V BATTERY
The AM-5 is the first of its series to have LFP prismatic cells, featuring a 5.12kWh system capacity as well as monitoring capabilities via the Hubble Cloudlink.
Specification: 51.2V 5.12kWh
Rating: 1C
Parallel: up to 8 packs with full communications
Extras: Battery Link, rawl bolts and wall bracket
CAN Bus: Yes
Hubble Cloudlink Ready: Yes
Rated Capacity (5HR): 100Ah
Nominal Voltage: 51.2V
Design Capacity: 5.12KWH
Equalized Charge Voltage: 55.2V
Max. Continuous Charging Current: 100A
Max. Continuous Discharging Current: 100A
C Rating: 1C
Weight: Approx. 51kg
Monitoring: Cloudlink
Parallel: Parrallel connection up to 8 packs with full communications
Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm
Ports: CAN-bus, Battery Link Ports
Cells: Prismatic LiFePO4
Design Life: ± 15 Years
Cycle Life: UNLIMITED CYCLES WITHIN THE HUBBLE LITHIUM 10 YEAR WARRANTY. (Ts & Cs Apply)
Certification: CE IEC UN38.3
Outer Package Material: White Bake Lacquer Steel Case
Operating Temperature
-
Charging: -10°C to +50 °C
-
Humidity: 15% to 75%
-
Storage: 10°C to +50°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
