Hubble Lithium AM2 5.5kwh 51v Battery

Hubble Lithium AM2 5.5kwh 51v Battery

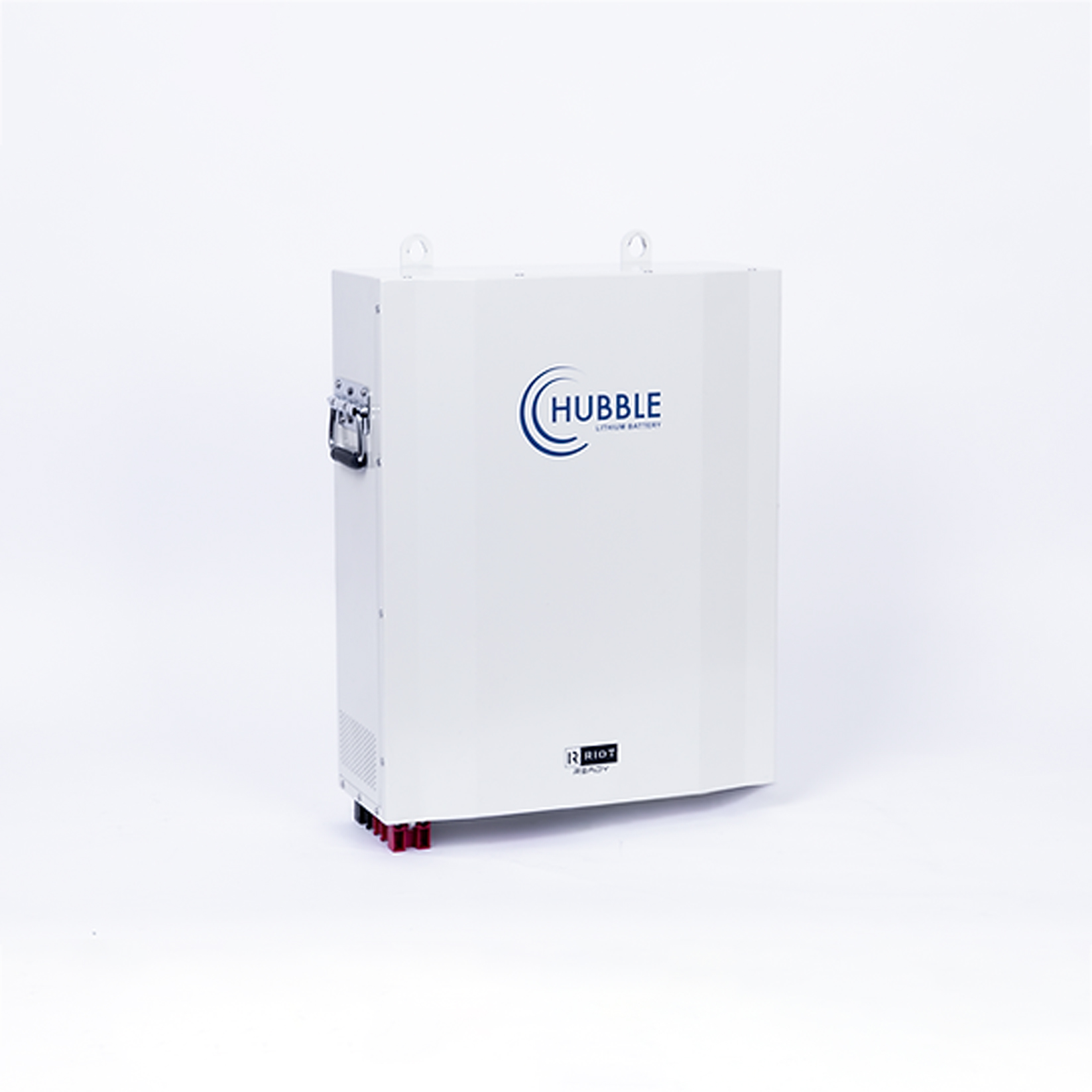

Hubble Lithium AM2 5.5kwh 51v Battery - Image 2

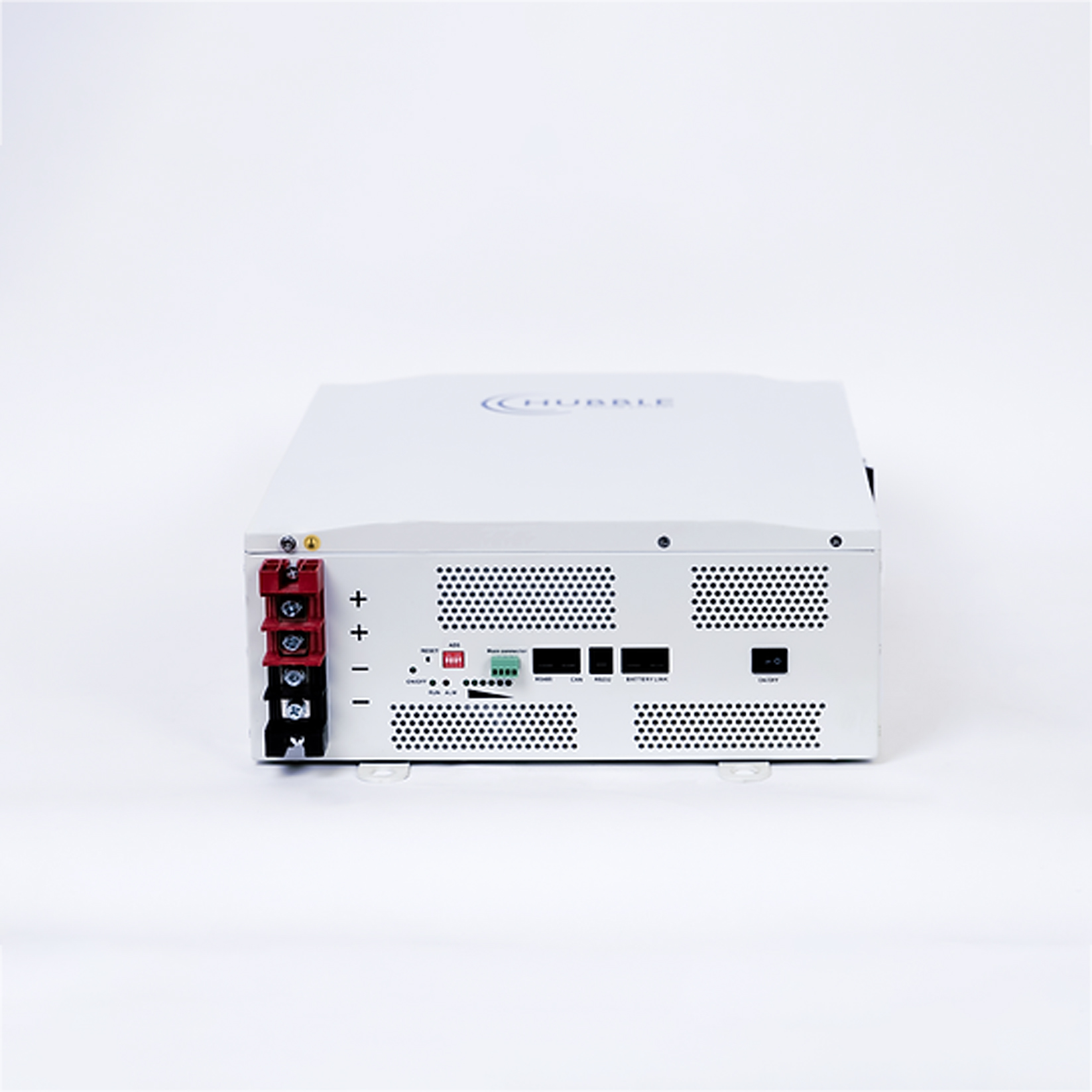

Hubble Lithium AM2 5.5kwh 51v Battery - Image 3
Hubble Lithium AM2 5.5kwh 51v Battery - Image 4

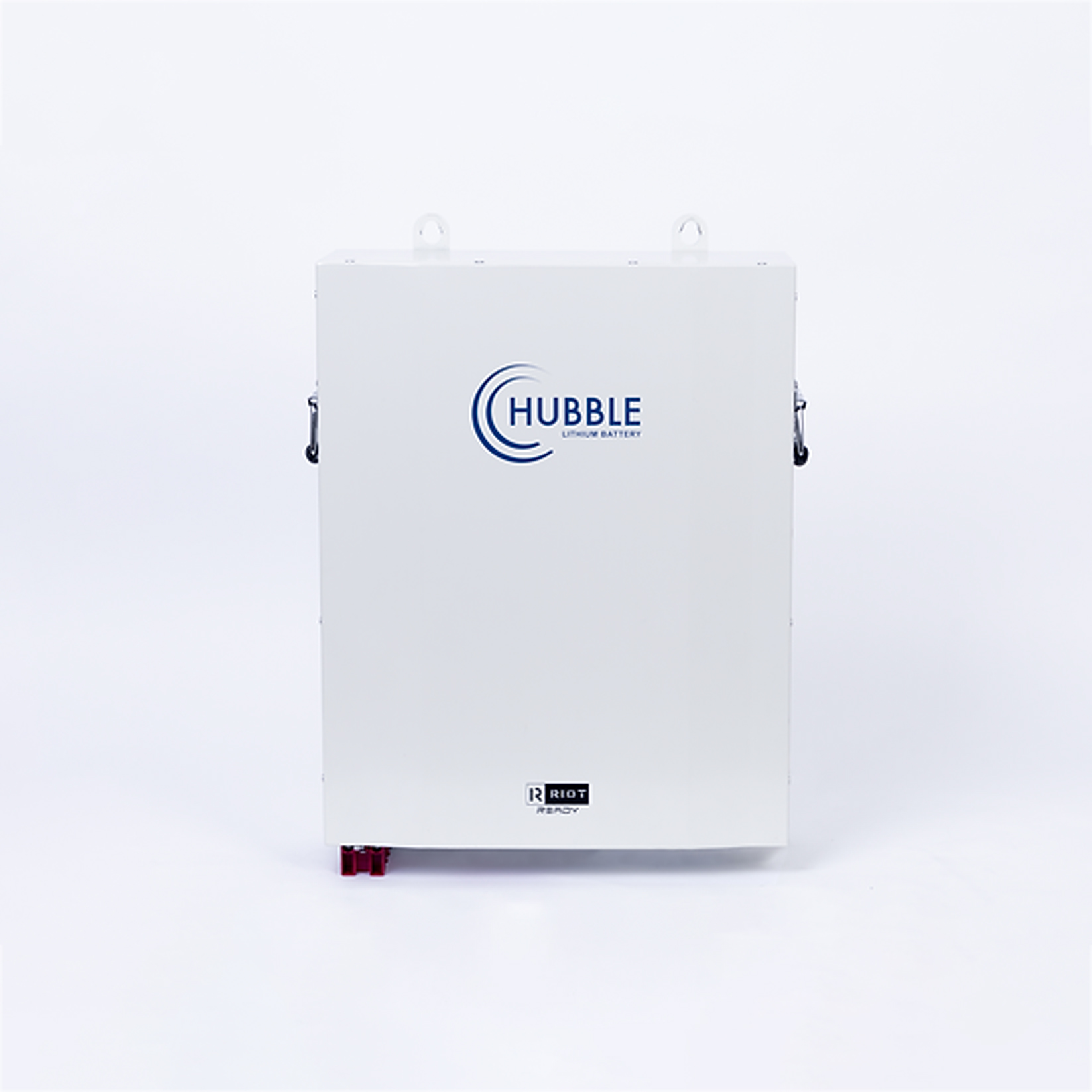

Hubble Lithium AM2 5.5kwh 51v Battery

The AM-2 is our 5.5KWh 48V Lithium pack designed to be easily wall mounted or shelf installed in a standard rack.​

​Specification: 48V  5.5kWh
Rating: 1C
Parallel: up to 15 units per string
Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes
​​CAN Bus: Yes
Hubble Cloudlink Ready: Yes

- +
Category: Tag:

  • Low self discharge

  • High cycle and service life

  • Easy wall mount or shelf rack installation

  • 1C High performance lithium battery

  • Excellent high temperature performance

  • Advanced BMS with current limiting function

  • Compatible with most inverters and chargers

  • High energy density and conversion efficiency

  • Cloudlink integration ready for wifi monitoring

  • Complete with integrated Battery Management System

  • Heavy duty side handles for easy handling and mounting on the wall

  • Built in protection for over-charge, over-discharge & over-temperature

  • CAN Bus, fully integrates and communicates with leading Inverter brands



Rated Capacity (5HR): 116Ah

Nominal Voltage: 48V

Design Capacity: 5.5kWh

Equalised Charge Voltage: 53.8V

Max. Continuous Charging Current: 105A

Max. Continuous Discharging Current: 105A

C Rating: 1.0C

Weight: Approx. 42kg

Display: None

Parallel: Parallel connection up to 15 packs with full communications

Dimensions (WxDxH): 375mm x 145mm x 467mm

Ports: 1 x CAN-bus, 2 x Battery Link Ports

Cells: New Li-ion Prismatic Cells

Design Life: ± 15 years

Cycle Life @ 1C: +/- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD

Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015

Outer Package Material: White Bake Lacquer Steel Case

Operating Temperature

  • Charging: 0°C to 55°C

  • Discharging: -20°C to +55°C

  • Storage: -20°C to +55°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
